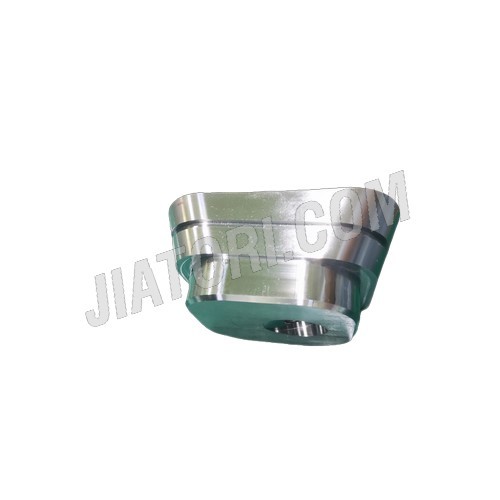

Basic Information PARAMETERS
Size: 100X80X80mm
Material: 1.2343
Hardness:
Function: For injection mold demolding
Documentation: Inspection report, Material certificate
Process tolerance: +/-0.01mm
Manufacturing Lead time: 10 Days
Transportation lead time: 3 Days (to Germany)
Items | Precision Mold Components |
Parts materials | NAK80, 8407, DF-2,45, S55C, P20, 1730, 2738, 718, H13, D2, 2343ESR, 1.2344, 1.2379, 1.2083, 1.2316, |
DC53, S136, SKD61, P20,1730hh, 2738hh, 718h, SKH-9, BPMHH, 2343hh, NIMAX, VANADIS 4 EXTRA | |
Mold of steel suppliers | FINKL, ASSAB, DAIDO,HITACHI, BUDERUS, DEW, BOHLER |
Application | Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware |
Design Software | Ug, PRO/E, Solidworks, Caita, CAD, STP, X_T, Igs |
Part Size Range | up to 2000mm |
Surface Requirement | Texture/ EDM /Spi Chrome Coating |
Design Capability | Dfm, Mould Flow Analysis, Full 2D & 3D Design |
Quality Assurance | Design Control, Steel Hardness Inspection Report |
Tooling lead-time | 15-40 days depends on qty and complexity of mold |
Transport Package | Standard or as You Request |
Why choose jiatori as your precision parts supplier?
Timely Communication:
Choosing Jiatori, you will get a quick response and easy communication. Because we have a great English-speaking team, who are familiar with precision component manufacturing terms and industries. They will provide customer service online; reply to your email or phone call within 12 hours.
Efficient Quotation:
When you need a quote from us, please click any contact us,our online team will get in touch with you. Please provide two copies of the documents. One is the drawing of products; the other one is the RFQ list. We will sign the agreement of confidentiality and non-disclosure to you. Our costing team will provide you a competitive price accordingly.
Technique Service:
Both of pre-sales and after-sales which we support customers. We offer our best manufacturing processes, prices, and value engineering support. If you double with the parts material, stainless steel or plastic, or don’t know how to make it more fit your equipment, our engineers will provide a detailed plan for your reference.
Make automatic jigs as your mind.
2. Non-standard items, we provide quality machined products design and manufacturing process.
3. Professional engineering considers improving in the precision manufacturing process from low quantity to large quantity production runs.
4. For big precision components or parts, we also provide assembly working.
5. A professional team with rich experience provides all-round technique support and auxiliary services.
6. Various materials are available for multiple demands, aluminum, brass/bronze, stainless steel, titanium, and so on.
7. We are always passionate and active, no matter whether you are a regular customer or newcomer, just looking for technical support or needs.
8. Suitable for various industries applications. For example, auto, medical, aerospace, and electronic industry.
Please feel free to contact us!
Strict Testing and Quality Control
Jiatori Precision Mould Co., Ltd. has a laboratory testing room. It has a complete set of testing and quality control equipment for
precision machined products. All QC personnel must undergo a one-month training and pass an examination.
Most of the equipment in the laboratory is imported from abroad. We maintain it according to strict procedures.
Accurate measurement of production data:
For machine product data such as length, width, thickness, inner diameter, outer diameter, slot width, etc., we have Swiss-made
Trimos V5/TESA HITE700.
For these more precise data, we have introduced Mitutoyo micrometers and Nikon 100 altimeters for further inspection.
For 2D dimensions such as plane, step and depth, we use an image measuring instrument made in Taiwan.
We are also equipped with a Hexagon CMM for all-round inspection of complex cavity shapes and can provide customers with
FAI, GR&R, MSA, CPK and SPC reports. Strict quality control ensures that the quality of our products meets or exceeds our
customers' requirements.
After the instrument measurement is completed, we verify it with physical inspection, which is also the inspection of the material object.
Packaging & Shipping
Packaging
Anti-corrosion oiled and packed in cartons
Delivery time
Delivery time for parts is usually 7-15 working days depending on quantity.
We ship by DHL, UPS, FEDEX or on request. It will take approximately 3-5 days to arrive at your workbench and a proof of delivery or
tracking number will be provided at the time of despatch. For larger quantities we ship by sea, which is more economical for the customer.
